    DISCRETE COMPONENT  > DIODES - ZENER - SINGLE/ARRAY

---


Manufacturer Part Number

Description

Stock

Price in INR

DataSheet

Tolerance

Operating Temperature

Package

Packaging

Impedance

Manufacturer

Forward Voltage

Reverse Leakage Current

Zener Voltage

Configuration

Mounting Type

Family

Power - Max.

Lead Time

BZX55C4V7

ZENER DIODE 4.7V 0.5W ±5% SK-BZX55C4V7

3445

1.75 to 2.56

±5%

-65°C ~ 175°C

DO-204AH, DO-35, Axial

Tape & Reel

60 Ohm

Vishay Semiconductor

1.5V @ 200mA

0.5µA

4.7V

Single

Through Hole

Diodes - Zener - Single

500mW

BZX55C3V9

ZENER DIODE 3.9V 500MW DO35 SK-BZX55C3V9

730

0.82 to 2.34

±5%

-65°C ~ 200°C

DO-204AH, DO-35, Axial

Bulk

85 Ohm

Fairchild Semiconductor

1.3V @ 100mA

2µA @ 1V

3.9V

*

Through Hole

Diodes - Zener - Single

500mW

BZX55C33

ZENER DIODE 33V 500MW DO35 SK-BZX55C33

580

0.8 to 2.28

±6%

-65°C ~ 175°C

DO-204AH, DO-35, Axial

Reel

80 Ohm

Fairchild Semiconductor

1.3V @ 100mA

100nA

33V

Single

Through Hole

Diodes - Zener - Single

500mW

ZENER-47V

ZENER DIODE 47V 500MW DO35 / 1N6016B SK-ZENER-47V

500

3 to 7.32

±5%

-65°C ~ 175°C

DO-204AH, DO-35, Axial

Bulk

170 Ohm

Micro Commercial Co

1.1V @ 200mA

100nA @ 36V

47V

Single

Through Hole

Diodes - Zener - Single

500mW

BZX55-C15

ZENER DIODE 15V 500MW DO35 SK-BZX55-C15

415

0.65 to 1.86

±6%

-65°C ~ 200°C

DO-204AH, DO-35, Axial

Bulk

30 Ohm

Philips Semiconductor

1.3V @ 100mA

100nA @ 11V

15V

Single

Through Hole

Diodes - Zener - Single

500mW

BZX55C24

ZENER DIODES 24V DO-35G 500mW SK-BZX55C24

393

1 to 2.44

±5%

-65°C ~ 175°C

DO-35-2

Cut Tape

80 Ohms

SEMTECH

*

*

24V

Single

Through Hole

Diodes - Zener - Single

500 mW

*

BZV55C6V2

ZENER DIODE 6.2V 500MW SOD80 SK-BZV55C6V2

310

0.65 to 1.86

±5%

-65°C ~ 200°C

DO-213AC, MINI-MELF, SOD-80

Cut Tape

*

NXP Semiconductors

900mV @ 10mA

3µA @ 4V

6.2V

*

Surface Mount

Diodes - Zener - Single

500mW

BZX55C15

ZENER DIODE 15V 0.5W ±6% SK-BZX55C15

256

0.89 to 2.54

±6%

-65°C ~ 175°C

DO-204AH, DO-35, Axial

Reel

30 Ohm

Fairchild Semiconductor

1.3V @ 100mA

100nA

15V

Single

Through Hole

Diodes - Zener - Single

500mW

BZX55C9V1

ZENER DIODE 9.1V 500MW DO35 SK-BZX55C9V1

243

0.9 to 2.57

±6%

-65°C ~ 200°C

DO-204AH, DO-35, Axial

Bulk

10 Ohm

Fairchild Semiconductor

1.3V @ 100mA

100nA @ 7V

9.1V

*

Through Hole

Diodes - Zener - Single

500mW

BZV55-C36,115

ZENER DIODE 36V 500MW LLDS SK-BZV55-C36,115

230

2 to 4.88

±5%

-65°C ~ 200°C

SOD-80C

Tape & Reel

90 Ohm

NXP Semiconductors

900mV @ 10mA

50nA @ 25.2V

36V

Single

Surface Mount

Diodes - Zener - Single

500mW

BZX55-C18

ZENER DIODE 18V 500mW AXIAL SK-BZX55-C18

210

0.9 to 2.57

±5%

-65°C ~ 175°C

DO-204AH, DO-35, Axial

Reel

30 Ohm

Non-Specific

1.3V @ 100mA

100nA

18V

*

Through Hole

Diodes - Zener - Single

500mW

MMSZ5257B-7-F

ZENER DIODE 33V 500MW SOD123 SK-MMSZ5257B-7-F

180

2.63 to 6.42

±5%

-65°C ~ 150°C

SOD-123

Tape & Reel

58 Ohm

Diodes Incorporated

900mV @ 10mA

100nA @ 25V

33V

Single

Surface Mount

Diodes - Zener - Single

500mW

BZV55-C2V4,115

ZENER DIODE 2.4V 500MW LLDS SK-BZV55-C2V4,115

173

0.71 to 2.03

±5%

-65°C ~ 200°C

SOD-80C

Tape & Reel

100 Ohm

NXP Semiconductors

900mV @ 10mA

50µA @ 1V

2.4V

Single

Surface Mount

Diodes - Zener - Single

500mW

TZM5228B-GS08

ZENER DIODES 3.9V, 0.5W SK-TZM5228B-GS08

170

2 to 4.88

±5%

-65°C ~ 175°C

SOD-80C

Bulk

23 Ohm

Vishay Semiconductor

*

10µA

3.9V

Single

Surface Mount

Diodes - Zener - Single

500mW

BZX55-C10

ZENER DIODE 10V 500MW DO35 SK-BZX55-C10

170

0.65 to 1.86

±5%

-65°C ~ 200°C

DO-204AH, DO-35, Axial

Bulk

15 Ohm

Philips Semiconductor

1.3V @ 100mA

100nA @ 7.5V

10V

Single

Through Hole

Diodes - Zener - Single

500mW

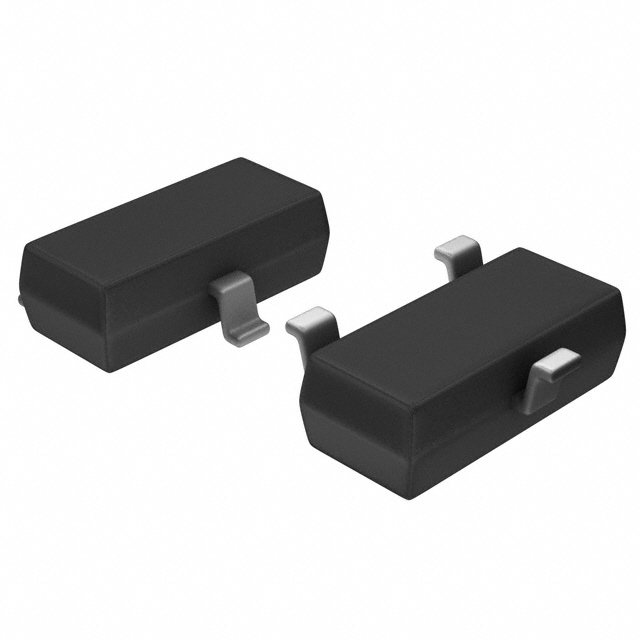

BZX84-C9V1,215

ZENER DIODE 9.1V 250MW TO236AB SK-BZX84-C9V1,215

165

0.49 to 1.40

±5%

-65°C ~ 150°C

TO-236-3, SC-59, SOT-23-3

Tape & Reel

15 Ohm

NXP Semiconductors

900mV @ 10mA

500nA @ 6V

9.1V

Single

Surface Mount

Diodes - Zener - Single

250mW

BZV49-C3V3,115

DIODE ZENER 3.3V 1W SOT89 SK-BZV49-C3V3,115

163

60 to 94.41

±5%

-65°C ~ 150°C

TO-243AA

Tape & Reel (TR)

95 Ohms

Nexperia USA Inc.

1V @ 50mA

5µA @ 1V

3.3V

*

Surface Mount

Diodes - Zener - Single

1W

*

BZX84-C27,215

ZENER DIODE 27V 250MW TO236AB SK-BZX84-C27,215

160

1 to 2.44

±5%

-65°C ~ 150°C

TO-236-3, SC-59, SOT-23-3

Tape & Reel

80 Ohm

NXP Semiconductors

900mV @ 10mA

50nA @ 18.9V

27V

Single

Surface Mount

Diodes - Zener - Single

250mW

BZV55-C24,115

ZENER DIODE 24V 500MW LLDS SK-BZV55-C24,115

160

1 to 2.44

±5%

-65°C ~ 200°C

SOD-80C

Tape & Reel

70 Ohm

NXP Semiconductors

900mV @ 10mA

50nA @ 16.8V

24V

Single

Surface Mount

Diodes - Zener - Single

500mW

BZV55-C47,115

ZENER DIODE 47V 500MW LLDS SK-BZV55-C47,115

147

0.75 to 2.14

±5%

-65°C ~ 200°C

SOD-80C

Tape & Reel

170 Ohm

NXP Semiconductors

900mV @ 10mA

50nA @ 32.9V

47V

Single

Surface Mount

Diodes - Zener - Single

500mW
